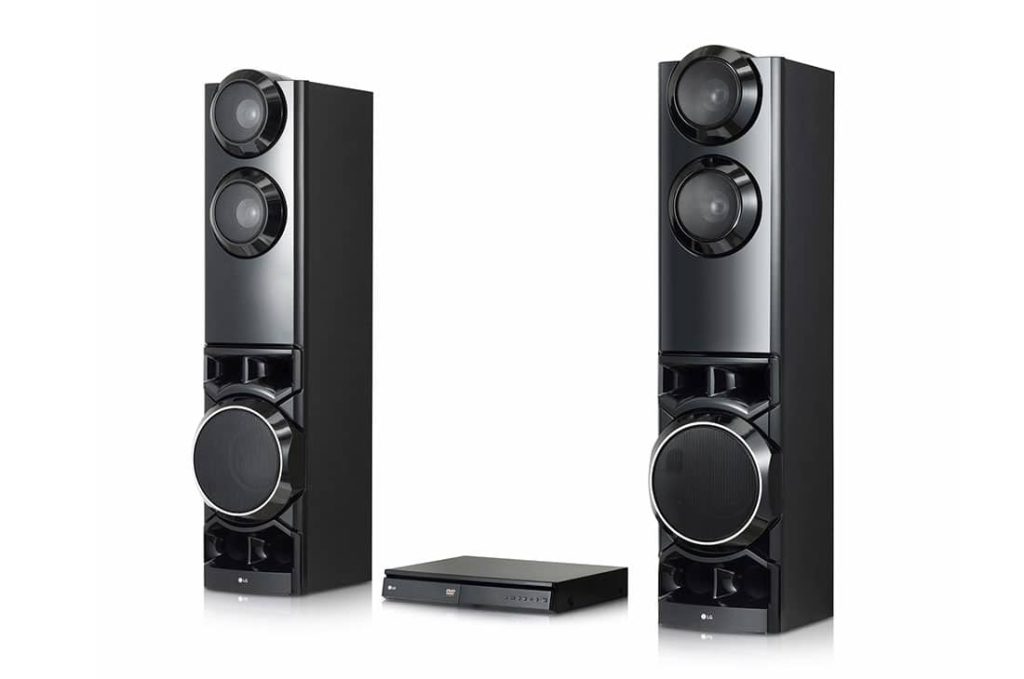

LG Home Theater System – 1,250 W RMS (LHD687BG )

---

---

Powerful Sound

Watch movies with the rich surround sound powered by LG Home Theater speakers. With 1,250 watts of power to create 4.2 channel surround sound.

Ultimate Bass

Integrated dual subwoofers located at the bottom of each speaker amplify bass all around you.

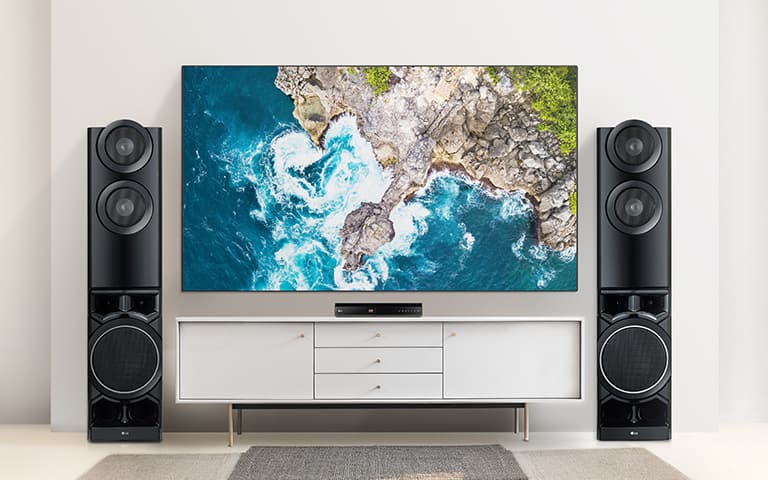

Space Saving & Simple Installation

The speakers are designed for easy installation and maximum space utilization. Setup is simple with instructions that are stress-free and without complicated wires. Experience a higher sense of audio clarity.

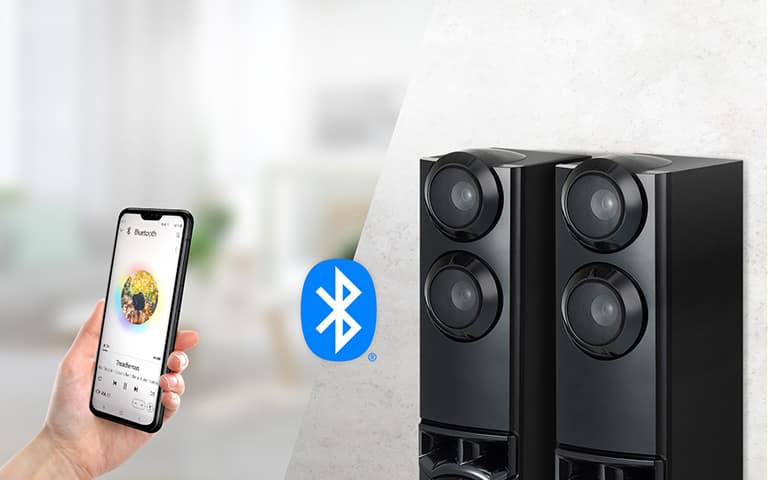

Bluetooth Streaming

Conveniently pair and play music via Bluetooth®. Enjoy your music on a variety of devices such as a smartphone, tablet.

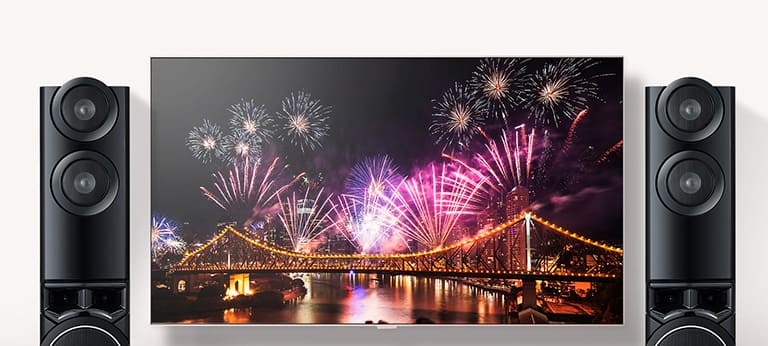

Extend your TV audio

Take your TV sound to a higher level. Simply connect your television via Bluetooth® and hear the difference.

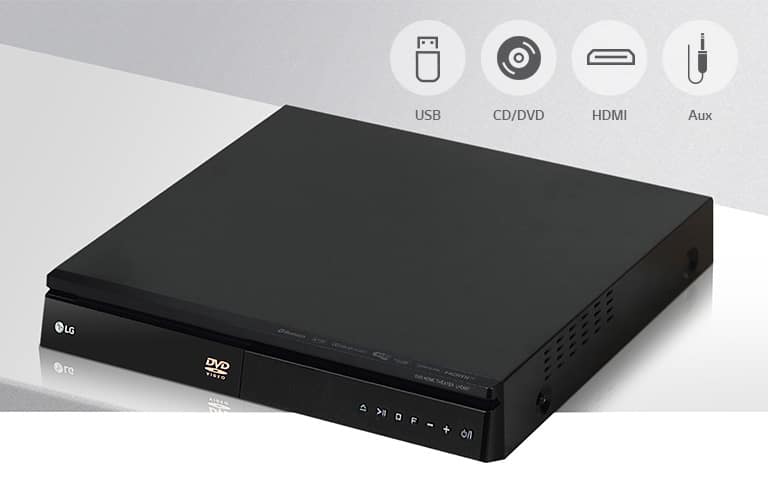

Convenient connectability

Listen to the radio or play a DVD/CD connected through an Aux or HDMI cable and USB. With various connectivity options, setup your speaker to meet all your entertainment needs.

---

Product Description

MODEL INFORMATION

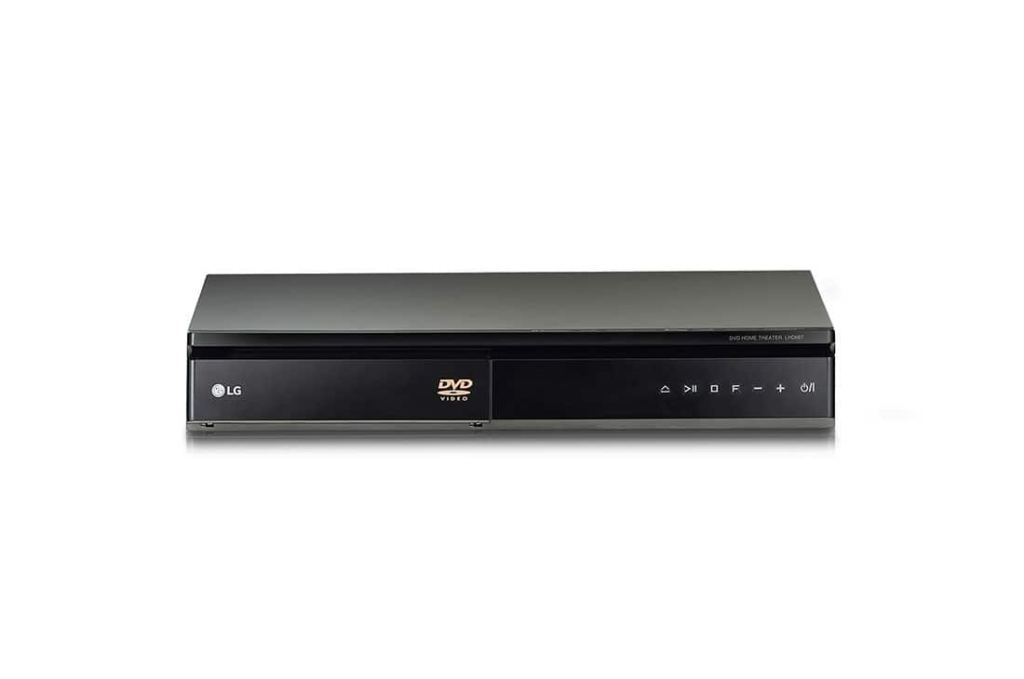

• System: LHD687-FC
• Speaker System: S60T1

SIZE(W X H X D, MM)

• Main: 360 X 58 X 298.5
• Front Speaker: 233 X 998 X 300
• Freight (20ft/40ft/40ft HC): 96/198/262

CH

• CH: 4.2

POWER OUTPUT THD 10%

• Total: 1250W (Only bypass Condition_measure)
• Front L/R: 200/200
• Surround L/R: 200/200
• Sub-Woofer: 200/200

DESIGN(MAINSET)

• Front & Rear cabinet (tray)

COMPATIBILITY

• 2D

IN & OUT(FRONT)

• Display: FLD
• USB: 1
• Mic: 2
• Audio In

IN & OUT(REAR)

• Video Out (Composite)
• Audio Input (Audio L/R)
• Audio Input (Optical): 1
• HDMI (Out): 1
• FM
• Speaker Terminal (channel composal): Front (2) Srround (2) Woofer (2)
• Speaker Terminal Type: Front (Spring) Srround (Spring) Woofer (LAN)

CONVENIENCE

• SIMPLINK
• Speaker Level TrimYes
• Speaker Distance (channel delay)
• Test Tone
• Mute
• A/V Sync Delay(Audio Delay)
• Dimmer
• Sleep
• Volume on TV
• USB Direct Recording (EU, CIS suffix don’t support it)
• TV Sound (direct key) / TV Sound connect (Auto PWR on/off by optical)
• TV Sound Sync (Optical / Bluetooth)
• Dynamic Range Control
• Bluetooth (Rx /Tx)

KARAOKE

• Mic Volume / Echo Volume
• Fanfare
• Scoring
• CD Voice Remover

FCC

• Enclosed Caption

PLAYABLE DISC TYPE

• DVD(NTSC)
• DVD(PAL)
• DVD-R
• DVD-RW(Video/VR Mode)
• DVD+R
• DVD+RW(Video mode)
• Video CD/Super VCD
• Audio CD
• CD-R/CD-RW

VIDEO FORMAT

• MPEG2
• Xvid

AUDIO FORMAT(DECODING)

• LPCMLPCM
• Dolby Digital (Dolby Audio)
• MPEG 1/2 L2
• MP3/ID3 Tag
• WMA

GRAPHICS/SUBTITLE FORMAT

• Format: 2bit/8bit Sub-picture (Text-based Subtitle)

VIDEO FEATURES

• GUI/MENU Language: Option
• Video DAC: 148MHZ/12bit
• NTSC/PAL Hz: 60Hz/50Hz
• Resolution: Upto 1080p24/60Hz

VBI

• WSS/CGMS-A/Closed Caption/Macrovsion
• NTSC⇔PAL ConversionYes
• Last Scene memory
• Screen Saver
• Auto Power Off
• Parental Lock
• Initial logo
• 1080p Upscaling

TRICK PLAY

• Fast Forward
• Fast Back
• Forword Slow
• Reverse Slow
• Pause
• Forward Step

SEARCH

• Title/Track
• Chapter
• Time

REPEAT PLAY

• Title/Track
• Chapter

RESUME STOP

• Resume Stop
• Random

POWER

• SMPS: Option
• Power Off Consumption: 0.5W ↓

RADIO

• Tuner Type: PLL
• Tuning Up/Down
• Preset Up/Down
• Band
• Preset Memory: 50 Station

SPEAKER FRONT

• Model Name: S60T1-S
• SPL: 82dB
• System: Enclosed
• Woofer Unit3″ Paper
• Impedance: 3Ω
• Non-magnetic shielding

SPEAKER REAR

• SPL: 82dB
• System: Enclosed
• Woofer Unit: 3″ Paper
• Impedance: 3Ω
• Non-magnetic shielding

SPEAKER SUBWOOFER

• SPL: 83dB
• System: Bass Reflex
• Woofer Unit6.5″ Paper (1EA)
• Impedance: 3Ω
• Non-magnetic shielding

EQUALIZER

• Standard
• USER EQ
• BASS BLAST
• Football

MANUAL

• Manual: Simple Manual
• Warranty Card

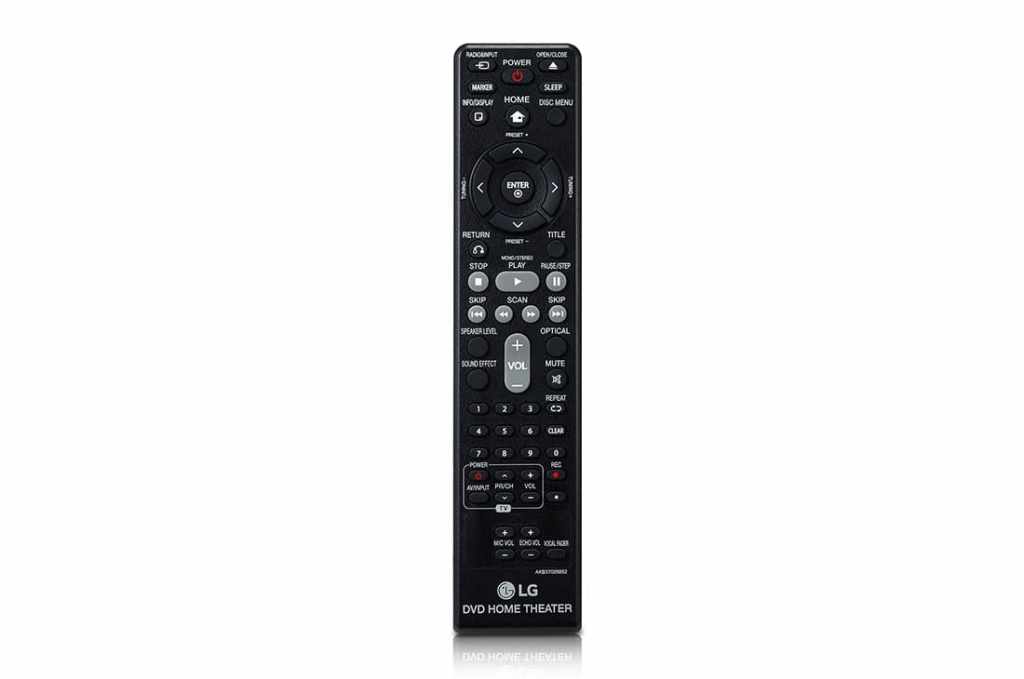

ACCESSORY(REMOTE CONTROL)

• Type: CB1
• Battery(Size): AAA x 1

ACCESSORY(OTHERS)

• Batteries (Remote Controller)
• FM / AM Antenna
• RCA Code(Video), Yellow, 1P
• HDMI Cable: △ (1.5M)
• Carton Box Type: Flexo
